koudgewalste CRSP-Z damwand

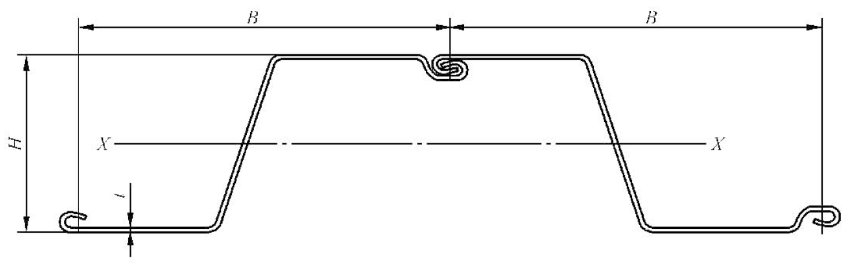

Section	Dimensions			sectional area	Mass		Moment of inertia	Modulus of Section
	Width	Height	Thickness	sectional area	Per pile	Wall	Moment of inertia	Modulus of Section
	B	H	t
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
CRSP-Z-835	550	200	8.0	121.0	52.3	95	8350	835
CRSP-Z-940	550	200	9.0	136.4	58.9	107.0	9400	940
CRSP-Z-1800	610	340	9.0	154.0	73.8	121.0	30600	1800
CRSP-Z-2000	610	340	10.0	171.0	81.7	134.0	34000	2000
CRSP-Z-2200	610	340	11.0	188.0	90.3	148.0	37400	2200
CRSP-Z-1805	630	380	8.0	127.2	62.9	99.8	34293	1805
CRSP-Z-2239	630	380	10.0	159.1	78.7	124.9	42531	2239
CRSP-Z-2672	630	380	12.0	190.9	94.4	149.8	50765	2672
CRSP-Z-1610	635	379	7.0	123.4	61.5	96.9	30502	1610
CRSP-Z-1827	635	380	8.0	140.6	70.1	110.3	34717	1827
CRSP-Z-2265	635	417	9.0	162.6	81.1	127.6	47225	2265
CRSP-Z-2500	635	418	10.0	180.0	89.7	141.3	52258	2500
CRSP-Z-2806	635	419	11.0	209.0	104.2	164.1	58786	2806
CRSP-Z-3042	635	420	12.0	227.3	113.3	178.4	63889	3042
CRSP-Z-3276	635	421	13.0	245.4	122.3	192.7	68954	3276
CRSP-Z-1229	650	319	7.0	113.2	57.8	88.9	19603	1229
CRSP-Z-1395	650	320	8.0	128.9	65.8	101.2	22312	1395
CRSP-Z-1980	650	437	8.0	138.8	70.8	108.8	43293	1980
CRSP-Z-2100	650	438	8.5	147.1	75.1	115.5	45912	2100
CRSP-Z-2220	650	438	9.0	155.5	79.4	122.1	48521	2220
CRSP-Z-2330	650	439	9.5	163.8	83.6	128.6	51120	2330
CRSP-Z-2450	650	439	10.0	172.3	87.9	135.2	53709	2450

Section	Dimensions			sectional area	Mass		Moment of inertia	Modulus of Section
	Width	Height	Thickness	sectional area	Per pile	Wall	Moment of inertia	Modulus of Section
	w	h	t
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
CRSP-Z-1370	675	399	6.5	104.7	55.5	82.2	27251	1370
CRSP-Z-1470	675	399	7.0	112.7	59.7	88.5	29281	1470
CRSP-Z-1570	675	400	7.5	120.7	64.0	94.8	31325	1570
CRSP-Z-1670	675	400	8.0	128.7	68.2	101.1	33350	1670
CRSP-Z-2620	675	440	10.5	181.0	95.9	142.1	57410	2620
CRSP-Z-2730	675	440	11.0	188.4	99.8	147.9	60043	2730
CRSP-Z-2850	675	441	11.5	196.9	104.4	154.6	62667	2850
CRSP-Z-2960	675	441	12.0	205.5	108.9	161.3	65281	2960
CRSP-Z-3120	675	442	12.7	217.5	115.2	170.7	68927	3120
CRSP-Z-3180	675	487	11.0	204.4	108.3	160.5	77367	3180
CRSP-Z-3320	675	488	11.5	213.4	113.1	167.5	80750	3320
CRSP-Z-3450	675	488	12.0	222.4	117.8	174.6	84121	3450
CRSP-Z-3580	675	489	12.5	231.3	122.5	181.5	87473	3580
CRSP-Z-3720	675	489	13.0	240.1	127.3	188.5	90830	3720
CRSP-Z-3455	675	490	12.0	224.4	118.9	176.1	84657	3455
CRSP-Z-3850	675	490	13.5	249.0	132.0	195.5	94167	3850
CRSP-Z-3980	675	490	14.0	257.8	136.6	202.4	97493	3980
CRSP-Z-4160	675	491	14.5	268.6	142.3	210.8	102020	4160
CRSP-Z-3720	675	491	13.0	242.3	128.4	190.2	91327	3720
CRSP-Z-3853	675	491.5	13.5	251.3	133.1	197.2	94699	3853
CRSP-Z-4300	675	492	15.0	277.8	147.2	218.1	101990	4300
CRSP-Z-1780	685	401	8.5	134.5	72.3	105.6	35558	1780
CRSP-Z-1862	685	401	9.0	144.0	77.4	113.0	37335	1862
CRSP-Z-1880	685	401	9.0	142.5	76.6	111.8	37580	1880
CRSP-Z-1970	685	402	9.5	150.3	80.8	118.0	39595	1970
CRSP-Z-2055	685	402	10.0	159.4	85.7	125.2	41304	2055
CRSP-Z-2070	685	402	10.0	158.2	85.1	124.2	41601	2070
CRSP-Z-1341	700	319.5	9.5	133.8	78.8	105.0	21425	1341
CRSP-Z-983	700	350	5.0	76.5	42.0	60.0	17208	983
CRSP-Z-1326	700	416.5	6.5	99.5	54.7	78.1	27616	1326
CRSP-Z-1423	700	417	7.0	107.0	58.8	84.0	29671	1423

Section	Dimensions			sectional area	Mass		Moment of inertia	Modulus of Section
	Width	Height	Thickness	sectional area	Per pile	Wall	Moment of inertia	Modulus of Section
	w	h	t
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
CRSP-Z-2496	750	451	11.5	181.6	106.9	142.6	56360	2496
CRSP-Z-2640	750	452	12.0	193.3	113.8	151.8	59665	2640
CRSP-Z-2794	750	453	13.0	211.7	124.6	166.2	63273	2794
CRSP-Z-3425	750	491	13.0	224.5	132.2	176.3	84085	3425
CRSP-Z-3632	750	492	14.0	240.1	141.3	188.5	89341	3632
CRSP-Z-4104	750	520	13.0	241.0	141.9	189.2	106697	4104
CRSP-Z-4805	750	520	15.0	292.8	172.4	229.8	124921	4805
CRSP-Z-4323	750	521	14.0	256.5	245.1	201.3	112625	4323
CRSP-Z-5099	750	521	16.0	311.4	183.4	244.5	132833	5.099
CRSP-Z-3855	750	522	15.0	268.1	157.8	210.5	100618	3855
CRSP-Z-4231	750	550	13.0	240.5	141.6	188.8	116350	4231
CRSP-Z-4532	750	551	14.0	258.3	152.0	202.7	124864	4532
CRSP-Z-507	850	253	5.0	61.4	41.1	48.4	6146	507
CRSP-Z-604	850	254	6.0	73.7	49.2	57.9	7671	604
CRSP-Z-814	850	255	7.0	91.3	60.9	71.6	10375	814
CRSP-Z-904	850	318	6.0	81.5	54.4	64.0	14381	904
CRSP-Z-1027	850	319	7.0	97.6	65.1	76.6	16386	1027
CRSP-Z-1102	850	320	8.0	109.7	73.2	86.2	17639	1102
CRSP-Z-1212	850	379	7.0	100.0	66.7	78.5	22973	1212
CRSP-Z-1307	850	380	8.0	112.5	75.1	88.3	24831	1307
CRSP-Z-513	900	253	5.0	70.0	43.1	47.9	6491	513
CRSP-Z-611	900	254	6.0	72.9	51.5	57.3	7757	611
CRSP-Z-1635	900	400	8.0	116.9	82.6	91.7	32711	1635
CRSP-Z-1829	900	401	9.0	131.3	92.6	102.9	36677	1829
CRSP-Z-2021	900	402	10.0	145.2	102.6	114.0	40616	2021
CRSP-Z-2496	750	451	11.5	181.6	106.9	142.6	56360	2496
CRSP-Z-2640	750	452	12.0	193.3	113.8	151.8	59665	2640
CRSP-Z-2794	750	453	13.0	211.7	124.6	166.2	63273	2794
CRSP-Z-3425	750	491	13.0	224.5	132.2	176.3	84085	3425
CRSP-Z-3632	750	492	14.0	240.1	141.3	188.5	89341	3632
CRSP-Z-4104	750	520	13.0	241.0	141.9	189.2	106697	4104

CRSP-Z damwand is meestal ontworpen met een U- of Z-profiel en met in elkaar grijpende koppelingen, Z-profielen stalen damwand zodat meerdere damwanden aan elkaar kunnen worden bevestigd om een structureel solide en vaak waterdichte muur of barrière te vormen.
