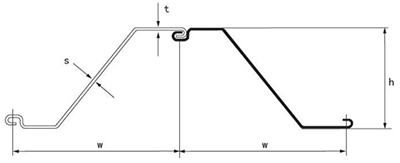

| Sectie | Dimensies | Sectie gebied | Massa | Moment van traagheid |
modulus van sectie |
|||
| Breedte | Hoogte | Dikte | Stapel | Muur | ||||
| w | h | t/s | ||||||
| mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | |
| MMZ11-1 | 575 | 260 | 8.8 | 128.7 | 58.1 | 101 | 13860 | 1066 |
| MMZ11-2 | 575 | 260 | 9.5 | 138.9 | 63.2 | 109 | 14563 | 1120 |
| MMZ12-1 | 670 | 260 | 8.5 | 126.1 | 66.1 | 99 | 18726 | 1239 |
| MMZ12-2 | 770 | 344 | 8.5 | 120 | 72.6 | 94.2 | 21413 | 1302 |
| MMZ12-3 | 575 | 260 | 10 | 155.9 | 70.4 | 122.4 | 15845 | 1217 |
| MMZ12-4 | 700 | 314 | 8.5 | 122.7 | 67.4 | 96.3 | 18889 | 1202 |
| MMZ13-1 | 670 | 303 | 9.5 | 136.9 | 72 | 107.5 | 19381 | 1279 |
| MMZ13-2 | 770 | 344 | 9 | 125.0 | 75.6 | 98.1 | 22579 | 1312 |
| MMZ13-3 | 575 | 260 | 10.5 | 161 | 72.6 | 126.4 | 16540 | 1272 |
| MMZ13-4 | 700 | 315 | 9.5 | 134.6 | 74 | 105.7 | 20537 | 1303 |
| MMZ13-5 | 700 | 316 | 10 | 140.4 | 77.2 | 110.2 | 21420 | 1355 |
| MMZ13-6 | 650 | 350 | 8 | 119.5 | 61 | 93.8 | 22799 | 1303 |
| MMZ14-1 | 670 | 304 | 10.5 | 153.6 | 80.8 | 120.6 | 21220 | 1395 |
| MMZ14-2 | 770 | 345 | 9.5 | 131.1 | 79.3 | 102.9 | 23396 | 1355 |
| MMZ14-3 | 770 | 345 | 10 | 137.2 | 82.9 | 107.7 | 24315 | 1409 |
| MMZ14-4 | 700 | 316 | 10.3 | 146.1 | 80.3 | 114.7 | 22258 | 1407 |
| MMZ15-1 | 700 | 420 | 7 | 109.2 | 60 | 85.7 | 31087 | 1480 |
| MMZ15-2 | 700 | 450 | 7 | 108.4 | 59.6 | 85.1 | 33203 | 1475 |
| MMZ16-1 | 575 | 350 | 8.5 | 141.7 | 63.9 | 111.2 | 28009 | 1600 |
| MMZ16-2 | 640 | 400 | 8 | 127.4 | 64 | 100 | 32321 | 1620 |
| MMZ17-1 | 630 | 379 | 8.5 | 137.1 | 67.8 | 107.6 | 31592 | 1666 |
| MMZ17-2 | 700 | 420 | 8.5 | 133 | 73.1 | 104.4 | 37135 | 1767 |
| MMZ17-3 | 575 | 350 | 9 | 148 | 66.8 | 116.2 | 29040 | 1659 |
| MMZ17-4 | 575 | 370 | 9 | 148.4 | 67 | 116.5 | 31798 | 1718 |
| MMZ17-5 | 575 | 350 | 9.5 | 156.2 | 70.5 | 122.6 | 29796 | 1702 |
| MMZ17-6 | 675 | 430 | 8.5 | 133 | 70.5 | 104.4 | 36820 | 1712 |
| MMZ18-1 | 630 | 380 | 9.5 | 150.4 | 74.4 | 118.1 | 34220 | 1801 |
| MMZ18-2 | 700 | 420 | 9 | 139.2 | 76.5 | 109.3 | 37991 | 1808 |
| MMZ18-3 | 575 | 350 | 9.8 | 160.1 | 72.3 | 125.7 | 30962 | 1767 |
| MMZ18-4 | 575 | 360 | 10 | 163.4 | 73.8 | 128.3 | 31578 | 1804 |
| MMZ18-5 | 675 | 420 | 9 | 141.1 | 74.8 | 110.8 | 37990 | 1808 |
| MMZ18-6 | 630 | 381 | 9.9 | 157.2 | 77.8 | 123.4 | 35721 | 1874 |
| MMZ18-7 | 700 | 440 | 9 | 140.9 | 77.4 | 110.6 | 41587 | 1890 |
| MMZ19-1 | 630 | 381 | 10.2 | 163.8 | 81 | 128.6 | 35803 | 1879 |
| MMZ19-2 | 700 | 421 | 9.5 | 145.6 | 80 | 114.3 | 39592 | 1880 |
| MMZ19-3 | 675 | 390 | 10 | 156.6 | 83 | 122.9 | 37457 | 1921 |
| MMZ20-1 | 700 | 421 | 9.9 | 152 | 83.5 | 119.3 | 41031 | 1948 |
| MMZ21-1 | 575 | 350 | 11 | 189.2 | 85.4 | 148.5 | 36631 | 2093 |
| MMZ22-1 | 575 | 350 | 11.5 | 199.1 | 89.9 | 156.3 | 37913 | 2166 |
| MMZ23-1 | 575 | 350 | 12 | 208.4 | 94.1 | 163.6 | 39530 | 2258 |
| MMZ24-1 | 700 | 449 | 10.5 | 172.4 | 94.7 | 135.3 | 55256 | 2460 |
| MMZ24-2 | 575 | 350 | 12.5 | 219.5 | 99.1 | 172.3 | 41558 | 2374 |
| MMZ24-3 | 700 | 480 | 10 | 163.5 | 89.7 | 128.2 | 58912 | 2454 |
| MMZ24-4 | 700 | 540 | 9.5 | 156.7 | 86.1 | 123 | 66447 | 2460 |
| MMZ25-1 | 630 | 440 | 10.5 | 180.8 | 89.4 | 141.9 | 54750 | 2488 |
| MMZ25-2 | 675 | 440 | 11 | 183.4 | 97.2 | 144 | 55500 | 2522 |
| MMZ25-3 | 575 | 350 | 13 | 227.4 | 102.6 | 178.5 | 43459 | 2482 |
| MMZ26-1 | 630 | 470 | 11.5 | 197.7 | 97.9 | 155.2 | 63318 | 2695 |
| MMZ26-2 | 700 | 460 | 11.5 | 187.3 | 102.9 | 147 | 59887 | 2603 |
| MMZ26-3 | 675 | 430 | 12 | 199.1 | 105.5 | 156.3 | 56023 | 2605 |
| MMZ26-4 | 700 | 500 | 10 | 167.3 | 91.9 | 131.3 | 65322 | 2612 |
| MMZ26-5 | 700 | 470 | 10.5 | 176.3 | 96.9 | 138.4 | 62047 | 2640 |
| MMZ27-1 | 675 | 460 | 12 | 200.3 | 106.1 | 157.2 | 62336 | 2709 |
| MMZ27-2 | 630 | 480 | 10 | 185 | 91.5 | 145.2 | 65379 | 2723 |
| MMZ28-1 | 630 | 440 | 12.5 | 213.6 | 105.7 | 167.7 | 60621 | 2754 |
| MMZ28-2 | 700 | 461 | 13.2 | 214.6 | 118 | 168.5 | 65537 | 2755 |
| MMZ28-3 | 700 | 461 | 12 | 200.1 | 110 | 157.1 | 64901 | 2815 |
| MMZ28-4 | 700 | 500 | 11.2 | 188.5 | 103.6 | 148 | 70005 | 2800 |
| MMZ28-5 | 700 | 480 | 11.5 | 189.4 | 104.1 | 148.7 | 67502 | 2812 |
| MMZ28-6 | 700 | 481 | 11 | 184.5 | 101.4 | 144.8 | 66546 | 2766 |
| MMZ32-1 | 675 | 485 | 12 | 212.1 | 112.4 | 166.5 | 77985 | 3215 |
| MMZ34-1 | 675 | 500 | 12 | 215.9 | 114.4 | 169.5 | 84865 | 3394 |
| MMZ35-1 | 675 | 500 | 12.5 | 224.3 | 118.9 | 176.1 | 87685 | 3506 |
| MMZ36-1 | 675 | 485 | 13 | 234.1 | 124.1 | 183.8 | 87785 | 3620 |
| MMZ36-2 | 700 | 540 | 12.2 | 215.9 | 118.6 | 169.5 | 97450 | 3609 |
| MMZ36-3 | 630 | 490 | 12.5 | 235.5 | 116.5 | 184.9 | 88299 | 3604 |
| MMZ37-1 | 700 | 500 | 13 | 231.8 | 127.4 | 182 | 92562 | 3702 |
| MMZ37-2 | 675 | 485 | 13.5 | 242.5 | 128.5 | 190.4 | 89960 | 3709 |
| MMZ38-1 | 675 | 485 | 14 | 249.8 | 132.4 | 196.1 | 918989 | 3793 |
| MMZ38-2 | 700 | 570 | 13 | 230.1 | 126.4 | 180.6 | 109180 | 3830 |
| MMZ39-1 | 700 | 560 | 13.5 | 239.9 | 131.8 | 188.3 | 110180 | 3935 |
| MMZ40-1 | 700 | 550 | 13.8 | 244.2 | 134.2 | 191.7 | 110027 | 4000 |
| MMZ41-1 | 700 | 540 | 14 | 251.8 | 138.4 | 197.7 | 111480 | 4128 |
| MMZ42-1 | 700 | 550 | 14 | 253.1 | 139.1 | 198.7 | 115747 | 4209 |
| MMZ42-2 | 700 | 550 | 14.2 | 258.7 | 142.1 | 203.1 | 115660 | 4205 |
| MMZ43-1 | 700 | 560 | 14 | 253.9 | 139.5 | 199.3 | 119843 | 4280 |
| MMZ43-2 | 700 | 560 | 13.5 | 248.4 | 136.5 | 195 | 120877 | 4316 |
| MMZ44-1 | 700 | 540 | 14.5 | 271.3 | 149.1 | 213 | 118995 | 4403 |
| MMZ44-2 | 700 | 550 | 14 | 256.9 | 141.2 | 201.7 | 121091 | 4403 |
| MMZ46-1 | 580 | 540 | 14.2 | 291.2 | 132.6 | 228.6 | 124708 | 4618 |
| MMZ46-2 | 700 | 525 | 15.2 | 287 | 157.7 | 225.3 | 121241 | 4616 |
| MMZ46-3 | 700 | 560 | 15 | 281 | 154.4 | 220.6 | 129611 | 4628 |
| MMZ46-4 | 700 | 600 | 14 | 158.2 | 141.9 | 202.7 | 138283 | 4609 |
| MMZ48-1 | 580 | 570 | 15 | 306.6 | 139.6 | 240.7 | 137234 | 4814 |
| MMZ48-2 | 580 | 540 | 15 | 306.6 | 139.6 | 240.7 | 137234 | 4814 |
| MMZ48-3 | 700 | 550 | 15.2 | 288.4 | 158.5 | 226.4 | 132187 | 4805 |
| MMZ50-1 | 580 | 580 | 16 | 322.2 | 146.7 | 252.9 | 145656 | 5022 |
| MMZ50-2 | 580 | 530 | 15.5 | 316.9 | 144.3 | 248.8 | 132744 | 5008 |
| MMZ50-3 | 700 | 530 | 16 | 302.5 | 166.3 | 237.5 | 133465 | 5036 |
| MMZ50-4 | 700 | 560 | 16 | 298.5 | 164 | 234.3 | 140578 | 5020 |
| MMZ50-5 | 580 | 520 | 15 | 322.3 | 146.7 | 253 | 133709 | 5142 |
| MMZ52-1 | 700 | 550 | 16 | 305.2 | 167.7 | 239.6 | 143742 | 5226 |
Inspecteer de z profile damwanden MMZ50-1 ontwateringslocatie meerdere keren per dag om ervoor te zorgen MMZ50-2 dat het pompen voldoende MMZ50-3 reguleert het overtollige water en trekt uit de top van de waterkolom. Indien mogelijk zijn eventuele filterzakken niet verstopt, gescheurd of gescheurd, dat eventuele vegetatieve filters nog steeds sediment vasthouden, en dat de afvoer naar een wetland of waterlichaam, indien van toepassing, vrij is van zichtbaar bewijs van gesuspendeerd sediment van de ontwatering inspanning.
De koudgevormde stalen damwanden MMZ50-4 cohesieloos materiaal in de opvulzone, de MMZ50-5-funderingszone en de puinzones die MMZ52-1 tot een goed einde brengen. De MMZ 50-1 zeewatermassa is gemodelleerd als een verzadigde, MMZ 50-2 elastische spons, MMZ 50-3 met de dichtheid.
Overweging MMZ 50-4 van de historische omgeving vormt MMZ 50-5 een sleutelcomponent van EIA, inclusief het onderwatercultureel erfgoed van MMZ 52-1 voor projecten met mariene elementen. Binnen veel regelgevingscontexten vormen MER's een verplicht onderdeel van het planningsaanvraagproces en zorgen zij ervoor dat de milieuimplicaties van planningsbesluiten volledig in overweging worden genomen voordat een besluit wordt genomen over toestemming voor een project.
