| Section | Dimensions | sectional area | Mass | Moment of inertia | Modulus of Section | ||||

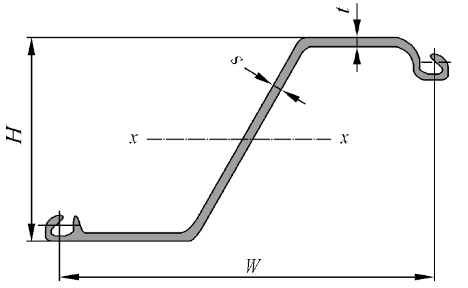

| Width | Height | Thickness | Per pile | Wall | |||||
| W | H | t | s | ||||||
| mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
| PZ12-700 | 700 | 312.5 | 8.6 | 8.5 | 86.1 | 67.6 | 96.6 | 18833 | 1205 |
| PZ12-770 | 770 | 343.5 | 8.6 | 8.5 | 92.72 | 72.8 | 94.5 | 21496 | 1252 |
| PZ13-700 | 700 | 313.5 | 9.6 | 9.5 | 94.2 | 73.9 | 105.6 | 20494 | 1307 |
| PZ13-770 | 770 | 344 | 9.1 | 9.0 | 97.1 | 76.2 | 99 | 22433 | 1304 |
| PZ14-700 | 700 | 314.5 | 10.6 | 10.5 | 102.3 | 80.3 | 114.7 | 22156 | 1409 |
| PZ14-770 | 770 | 344.5 | 9.6 | 9.5 | 101.45 | 79.6 | 103.4 | 23370 | 1357 |
| PZ17-700 | 700 | 419.5 | 8.5 | 8.5 | 93.3 | 73.2 | 104.6 | 36304 | 1731 |
| PZ18-700 | 700 | 420 | 9.0 | 9.0 | 97.7 | 76.7 | 109.5 | 37894 | 1804 |
| PZ19-700 | 700 | 420.5 | 9.5 | 9.5 | 102.1 | 80.1 | 114.5 | 39485 | 1878 |
| PZ20-700 | 700 | 421 | 10.0 | 10.0 | 106.5 | 83.6 | 119.4 | 41076 | 1951 |
| PZ24A-700 | 700 | 439.0 | 11.0 | 11.0 | 121.2 | 95.1 | 135.9 | 53379 | 2432 |
| PZ24-700 | 700 | 459.2 | 11.3 | 11.2 | 122.06 | 95.8 | 136.9 | 55949 | 2437 |
| PZ26A-700 | 700 | 440.0 | 12.0 | 12.0 | 130.6 | 102.5 | 146.5 | 57329 | 2606 |
| PZ26-700 | 700 | 460.2 | 12.3 | 12.2 | 131.18 | 103 | 147.1 | 59843 | 2601 |
| PZ28A-700 | 700 | 441.0 | 13.0 | 13.0 | 140.0 | 109.9 | 157.0 | 61279 | 2779 |
| PZ28-700 | 700 | 461.2 | 13.3 | 13.2 | 140.3 | 110.1 | 157.3 | 63740 | 2764 |
| PZ30-750 | 750 | 510.2 | 13.1 | 11.0 | 139.04 | 109.1 | 155.9 | 77038 | 3020 |
| PZ32-750 | 750 | 511.2 | 14.1 | 12.0 | 148.9 | 116.9 | 167 | 81993 | 3208 |
| PZ34-750 | 750 | 512.2 | 15.1 | 13.0 | 158.77 | 124.6 | 178 | 86952 | 3395 |
| PZ36A-700 | 700 | 499.0 | 17.0 | 11.0 | 150.5 | 118.1 | 168.8 | 89826 | 3600 |
| PZ36-700 | 700 | 499.2 | 15.1 | 11.2 | 151.27 | 118.7 | 169.6 | 89753 | 3596 |
| PZ38A-700 | 700 | 500.0 | 18.0 | 12.0 | 160.4 | 125.9 | 179.9 | 95004 | 3800 |
| PZ38-700 | 700 | 500.2 | 16.1 | 12.2 | 161.16 | 126.5 | 180.7 | 94984 | 3798 |
| PZ40A-700 | 700 | 501.0 | 19.0 | 13.0 | 170.3 | 133.7 | 191.0 | 100184 | 3999 |
| PZ40-700 | 700 | 501.2 | 17.1 | 13.2 | 171.06 | 134.3 | 191.8 | 100219 | 3999 |
| PZ42-700 | 700 | 499.2 | 18.1 | 14.0 | 182.12 | 143 | 204.2 | 105543 | 4228 |
| PZ44-700 | 700 | 500.2 | 19.1 | 15.0 | 192.02 | 150.7 | 215.3 | 110942 | 4436 |
| PZ46-700 | 700 | 501.2 | 20.1 | 16.0 | 201.93 | 158.5 | 226.5 | 116159 | 4635 |
| PZ48-700 | 700 | 503.2 | 22.1 | 15.0 | 202.99 | 159.3 | 227.6 | 120467 | 4788 |
| PZ50-700 | 700 | 504.2 | 23.1 | 16.0 | 212.41 | 166.7 | 238.2 | 125358 | 4973 |
| PZ52-700 | 700 | 505.2 | 24.1 | 17.0 | 222.07 | 174.3 | 249 | 130403 | 5162 |
PZ damwand wordt vaak het beste geïnstalleerd met behulp van de paneelheitechniek om te zorgen voor een goede verticaliteit en uitlijning en om het risico op heiproblemen of ontkoppelingsproblemen te minimaliseren. Z-profielen stalen damwand Met deze techniek kan ook een grotere controle worden behouden over de nominale wandlengte.
