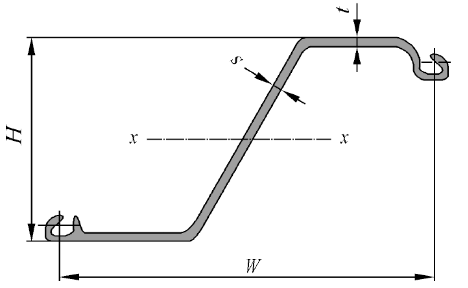

| Section | Dimensions | sectional area | Mass | Moment of inertia | Modulus of Section | ||||
| Width | Height | Thickness | Per pile | Wall | |||||
| W | H | t | s | ||||||
| mm | mm | mm | cm2/m | kg/m | kg/m2 | cm4/m | cm3/m | ||
| PZ 12-700 | 700 | 312.5 | 8.6 | 8.5 | 86.1 | 67.6 | 96.6 | 18833 | 1205 |
| PZ 12-770 | 770 | 343.5 | 8.6 | 8.5 | 92.72 | 72.8 | 94.5 | 21496 | 1252 |
| PZ 13-700 | 700 | 313.5 | 9.6 | 9.5 | 94.2 | 73.9 | 105.6 | 20494 | 1307 |
| PZ 13-770 | 770 | 344 | 9.1 | 9.0 | 97.1 | 76.2 | 99 | 22433 | 1304 |
| PZ 14-700 | 700 | 314.5 | 10.6 | 10.5 | 102.3 | 80.3 | 114.7 | 22156 | 1409 |
| PZ 14-770 | 770 | 344.5 | 9.6 | 9.5 | 101.45 | 79.6 | 103.4 | 23370 | 1357 |
| PZ 17-700 | 700 | 419.5 | 8.5 | 8.5 | 93.3 | 73.2 | 104.6 | 36304 | 1731 |
| PZ 18-700 | 700 | 420 | 9.0 | 9.0 | 97.7 | 76.7 | 109.5 | 37894 | 1804 |
| PZ 19-700 | 700 | 420.5 | 9.5 | 9.5 | 102.1 | 80.1 | 114.5 | 39485 | 1878 |
| PZ 20-700 | 700 | 421 | 10.0 | 10.0 | 106.5 | 83.6 | 119.4 | 41076 | 1951 |
| PZ 24A-700 | 700 | 439.0 | 11.0 | 11.0 | 121.2 | 95.1 | 135.9 | 53379 | 2432 |
| PZ 24-700 | 700 | 459.2 | 11.3 | 11.2 | 122.06 | 95.8 | 136.9 | 55949 | 2437 |
| PZ 26A-700 | 700 | 440.0 | 12.0 | 12.0 | 130.6 | 102.5 | 146.5 | 57329 | 2606 |
| PZ 26-700 | 700 | 460.2 | 12.3 | 12.2 | 131.18 | 103 | 147.1 | 59843 | 2601 |
| PZ 28A-700 | 700 | 441.0 | 13.0 | 13.0 | 140.0 | 109.9 | 157.0 | 61279 | 2779 |
| PZ 28-700 | 700 | 461.2 | 13.3 | 13.2 | 140.3 | 110.1 | 157.3 | 63740 | 2764 |
| PZ 30-750 | 750 | 510.2 | 13.1 | 11.0 | 139.04 | 109.1 | 155.9 | 77038 | 3020 |
| PZ 32-750 | 750 | 511.2 | 14.1 | 12.0 | 148.9 | 116.9 | 167 | 81993 | 3208 |
| PZ 34-750 | 750 | 512.2 | 15.1 | 13.0 | 158.77 | 124.6 | 178 | 86952 | 3395 |
| PZ 36A-700 | 700 | 499.0 | 17.0 | 11.0 | 150.5 | 118.1 | 168.8 | 89826 | 3600 |
| PZ 36-700 | 700 | 499.2 | 15.1 | 11.2 | 151.27 | 118.7 | 169.6 | 89753 | 3596 |
| PZ 38A-700 | 700 | 500.0 | 18.0 | 12.0 | 160.4 | 125.9 | 179.9 | 95004 | 3800 |
| PZ 38-700 | 700 | 500.2 | 16.1 | 12.2 | 161.16 | 126.5 | 180.7 | 94984 | 3798 |
| PZ 40A-700 | 700 | 501.0 | 19.0 | 13.0 | 170.3 | 133.7 | 191.0 | 100184 | 3999 |
| PZ 40-700 | 700 | 501.2 | 17.1 | 13.2 | 171.06 | 134.3 | 191.8 | 100219 | 3999 |
| PZ 42-700 | 700 | 499.2 | 18.1 | 14.0 | 182.12 | 143 | 204.2 | 105543 | 4228 |
| PZ 44-700 | 700 | 500.2 | 19.1 | 15.0 | 192.02 | 150.7 | 215.3 | 110942 | 4436 |
| PZ 46-700 | 700 | 501.2 | 20.1 | 16.0 | 201.93 | 158.5 | 226.5 | 116159 | 4635 |
| PZ 48-700 | 700 | 503.2 | 22.1 | 15.0 | 202.99 | 159.3 | 227.6 | 120467 | 4788 |
| PZ 50-700 | 700 | 504.2 | 23.1 | 16.0 | 212.41 | 166.7 | 238.2 | 125358 | 4973 |
| PZ 52-700 | 700 | 505.2 | 24.1 | 17.0 | 222.07 | 174.3 | 249 | 130403 | 5162 |
PZ stalen damwand Bij moeilijke grondomstandigheden wordt paneelinstallatie gecombineerd met verspringend heien aanbevolen. Warmgewalste damwand omdat damwandwanden hun steun ontlenen aan de omliggende grond, moet er bij aanvang van de planning voor de wand een onderzoek worden uitgevoerd naar de funderingsmaterialen langs de wanduitlijning.
